Formulating with Polysorbate 80: Synergies, HLB 15.0 Strategy & Dosage Guide

Introduction

Polysorbate 80 (E433), commonly known as Tween 80, is the workhorse of the food emulsion industry. Valued for its high HLB and versatility, it is critical for creating stable oil-in-water (O/W) emulsions. However, unlocking its full potential requires more than just adding it to a tank.

This practitioner’s guide covers how to select the right grade, leverage surfactant synergies, and design robust processes for stability in beverages, ice cream, and bakery applications.

1. Technical Basics: Grade Selection & HLB Targeting

Before starting benchtop trials, it is crucial to understand the chemical parameters of your surfactant.

Key Technical Data: Polysorbate 80

• Chemical Name: Polyoxyethylene (20) sorbitan monooleate
• Common Name: Tween 80
• HLB Value: 15.0 (High Hydrophilic-Lipophilic Balance)
• Solubility: Soluble in water and ethanol; insoluble in vegetable oils.
• Primary Function: O/W Emulsifier, Solubilizer, Wetting Agent.
• Compliance: E433 (EU) / 21 CFR 172.840 (USA)

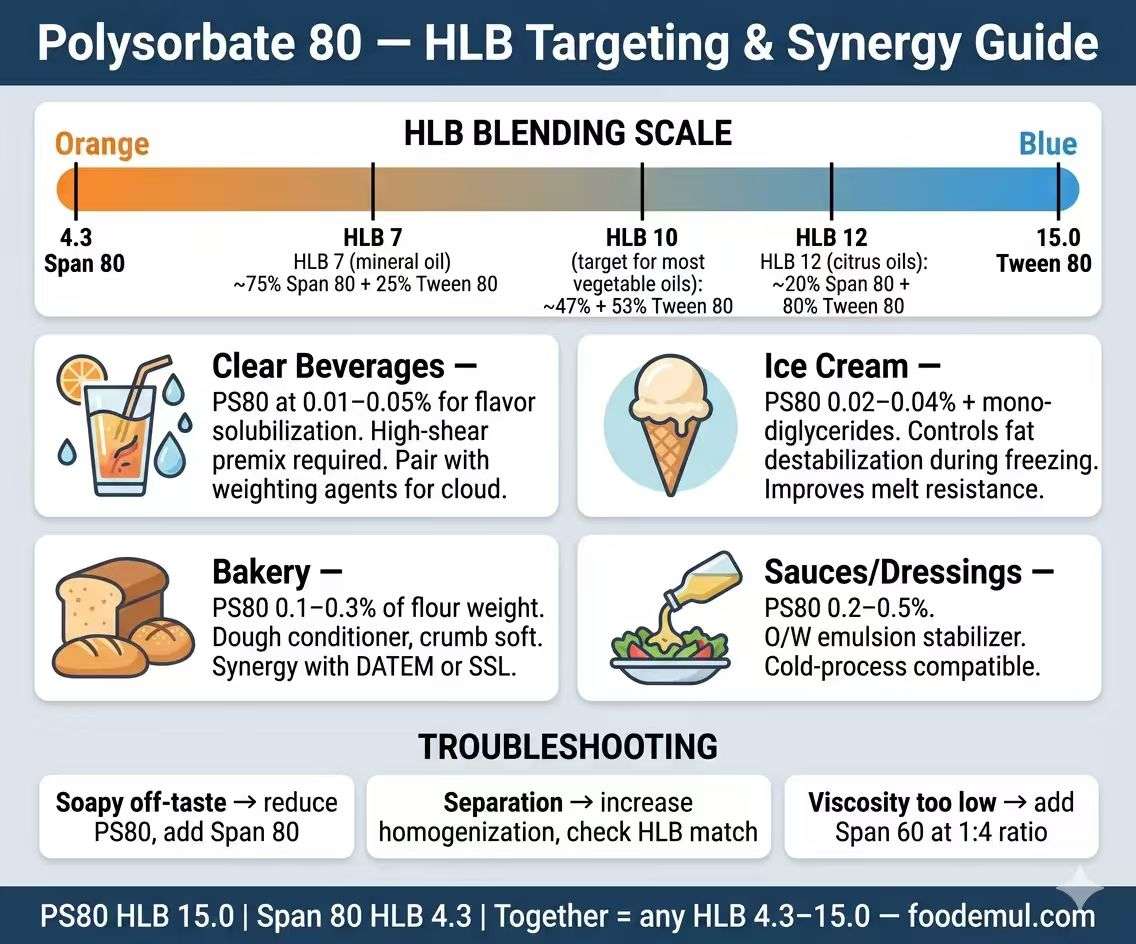

The HLB 15.0 Strategy

Since Polysorbate 80 has an HLB of 15.0, it is highly hydrophilic (water-loving). This makes it excellent for:

1. Solubilizing flavors into water (e.g., clear beverages).
2. Creating O/W emulsions where fine droplet size is needed.

Matching the “Required HLB”:

Most vegetable oils require an HLB of 10–12 for optimal stability. Using Polysorbate 80 alone (HLB 15.0) might be too hydrophilic.

• The Solution: Blend Polysorbate 80 with a lipophilic (oil-loving) surfactant like Span 80 (Sorbitan Monooleate) (HLB 4.3).
• The Calculation: By adjusting the ratio of Tween 80 to Span 80, you can precisely hit any HLB target between 4.3 and 15.0.

2. Synergistic Systems: Optimizing Surfactant Blends

Polysorbate 80 performs best when part of a system. Using a single surfactant often requires higher dosages, which can lead to off-flavors. Blending creates synergy.

3. Process Design: Temperature & Shear

Even the perfect formula will fail with the wrong process.

Pre-dissolution & Addition Order

• Hydration: Although water-soluble, pre-blending PS80 with the oil phase or a warm aqueous phase ensures rapid dispersion.
• Proteins: Always hydrate proteins first. Adding PS80 too early can displace proteins from the interface due to competitive adsorption, potentially destabilizing the system.

Temperature & Shear Profile

• Temperature Window: 40–60°C is ideal. This lowers viscosity and accelerates dissolution without degrading sensitive flavor oils.
• Shear Strategy:
  1. Low Shear: For initial wet-out.
  2. High Shear/Homogenization: Required to reach target droplet size.
     • D90 < 1–2 µm: For standard physical stability (milky appearance).
     • D90 < 200 nm: For clarity (nano-emulsions).

4. Application Mini-Guides (Dosage & Tips)

Clear Flavored Beverages: Clarity & Solubilization

• Goal: Crystal clear appearance with stable flavor solubilization.
• Approach: Use PS80 at low ppm levels with a high-shear premix. Often paired with Propylene Glycol as a co-solvent.
• Target: Droplet size must be smaller than the wavelength of light (< 100-200 nm).

Ice Cream: Overrun & Meltdown Control

• Goal: Controlled fat agglomeration for dryness and overrun (air incorporation).
• Approach: 0.1% – 0.2% PS80 in the mix.
• Mechanism: PS80 displaces protein from the fat globule surface, allowing partial coalescence. This structure traps air, creating a creamy texture and slow meltdown.
• Sensory Check: Monitor for “waxy” mouthfeel if dosage exceeds 0.25%.

Plant-Based Milk: Calcium Fortification

• Goal: Emulsion stability in the presence of Calcium ions and heat.
• Approach: PS80 (0.05–0.15%) + Gellan Gum or Pectin.
• Process: Use two-stage homogenization (e.g., 200/50 bar) to prevent flocculation.

5. Formulation Troubleshooting (Decision Tree)

When hitting regulatory or sensory limits, use this logic to adjust your formula rather than abandoning Polysorbate 80 entirely.

• Problem: “Soapy” or Bitter Off-Notes?
  • Solution: Do not replace entirely. Blend with Lecithin or Span 60 (Sorbitan Monostearate) to dampen the sensory impact, or reduce PS80 dosage to <0.1%.
• Problem: Fat Separation in Chocolate (Fat-Continuous)?
  • Solution: Polysorbate 80 is hydrophilic (water-loving). For oil-based systems, it is the wrong tool. Switch to PGPR (E476) or Span 60/65.
• Problem: Label requires “Clean Label”?
  • Solution: Evaluate Quillaia Extract or Gum Acacia. Note: These require significantly higher usage rates and may result in larger droplet sizes.

6. Stability Testing & Compliance

Quick-Start Stability Checklist:

1. Thermal: Pasteurization/UHT simulation and heat-hold at 40°C.
2. pH Sweep: Test intended pH range ±0.5 units to ensure the emulsion doesn’t break in acidic environments.
3. Freeze–Thaw: 3–5 cycles for frozen desserts.
4. Centrifuge: Accelerated creaming check (e.g., 3000 rpm for 15 min).

Compliance Disclaimer:

Usage permissions, maximum levels, and labeling vary by country and food category. Always verify current local regulations (EU E433, EFSA opinions, 21 CFR 172.840) and confirm product specifications with your supplier before commercialization.
