From Sugar to Surfactant: A Simple Guide to Spans and Polysorbates

From Sugar to Surfactant: A Simple Guide to Spans and polysorbate

Ever look at an ice cream label, a face cream jar, or a vaccine vial and wonder what’s keeping the oil and water from separating in there?

At FoodEmul, we work with these ingredients every day. They’re called Spans and polysorbate, and they all start from the same surprising place: corn sugar.

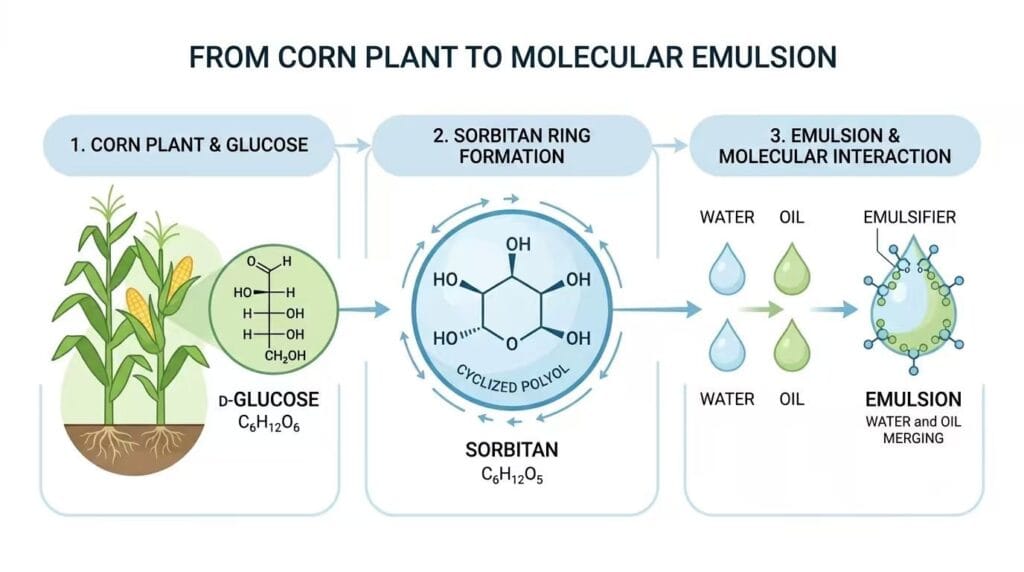

Here’s how a simple sugar molecule gets transformed, step by step, into the emulsifiers that hold your food, cosmetics, and medicines together.

---

Step 1: From Glucose to Sorbitol

It starts with D-Glucose, the sugar you get from corn starch. But regular glucose is too reactive to build a stable industrial ingredient — the aldehyde group at the top causes problems. So we add hydrogen.

       CH=O                               CH2OH
       |                                  |
    H—C—OH                             H—C—OH
       |                                  |
   HO—C—H      +   H2   ------>       HO—C—H
       |                                  |
    H—C—OH                             H—C—OH
       |                                  |
    H—C—OH                             H—C—OH
       |                                  |
       CH2OH                              CH2OH
     D-Glucose                          D-Sorbitol

What just happened: Hydrogen targets that reactive -CHO group and turns it into a stable alcohol group (-CH2OH). The result is D-Sorbitol — sweet, stable, and water-loving.

D-Glucose + H2 → D-Sorbitol

---

Step 2: Making Sorbitan — the Core Ring

Sorbitol is a straight chain with lots of hydroxyl groups sticking out. To turn it into something useful as an emulsifier backbone, it needs to curl up and lose some water.

       CH2OH
       |
1   H—C—OH
       |             Heat
2  HO—C—H          -------->       [ 1,4-Sorbitan Ring ]  +  H2O
       |           (- 1 Water)
3   H—C—OH
       |
4   H—C—OH
       |
    (Rest of Chain)

What just happened: Apply heat. The sorbitol molecule drops one water molecule (H2O). The carbon chain loops back and forms a stable 5-membered ring called Sorbitan — the construction base for everything that comes next.

Sorbitol → Sorbitan + H2O

---

Step 3: Attaching the Oil-Loving Tail — the Span Series

Sorbitan loves water. To make it work as an emulsifier, it also needs to grab onto oil. We do that by attaching a fatty acid tail from plant oils.

[ Sorbitan Ring ]—OH   +   R—COOH   ------->   [ Sorbitan Ring ]—O—C(=O)—R   +   H2O
 (Water-loving)         (Fatty Acid Tail)               (Sorbitan Ester / Span)

The acid head reacts with one of sorbitan’s open hydroxyl groups (-OH). They link up, and a water molecule gets released. The result is a Sorbitan Ester — brand name Span.

Sorbitan + Fatty Acid → Sorbitan Ester (Span) + H2O

The Span family — same core, different tails:

Span	Fatty Acid	What You Get
Span 20	Lauric acid	Amber liquid, good for light oil systems
Span 60	Stearic acid	Waxy solid, great for creams
Span 80	Oleic acid	Thick liquid, ideal for W/O blending

---

Step 4: Adding Water-Loving Arms — the polysorbate Series

Spans dissolve well in oil. For water-soluble applications, we grow long water-loving chains onto the Span molecule.

                       O
                      / \
[ Span Molecule ] + n CH2—CH2  ------->  [ POE Chains attached to Ring ]
                   (Ethylene Oxide)               (Polysorbate / polysorbate)

The Span reacts with ethylene oxide (EO) gas. Exactly 20 units of EO are added, forming highly polar, water-loving chains.

Span + Ethylene Oxide → Polysorbate (polysorbate)

The polysorbate family — water-soluble twins of their Span partners:

polysorbate	Partner Span	Best At
polysorbate 20	Span 20	Dispersing fragrances and essential oils
polysorbate 60	Span 60	Baked goods, coffee creamers, food emulsions
polysorbate 80	Span 80	Pharmaceutical injections, vaccines, lotions

---

How They Work Together

Spans love oil. polysorbate love water. In practice, formulators blend them. The oil-loving tails of Spans lock with the water-loving arms of polysorbate at the oil-water boundary, forming a protective shield that keeps the emulsion stable for months or years — a mechanism called steric hindrance.

Where you encounter this every day:

• Food: stopping chocolate bloom, keeping peanut butter from separating, giving ice cream its creamy texture
• Cosmetics: face creams and liquid makeup that stay blended instead of settling
• Medicine: delivering vaccines and injectable drugs smoothly

---

Want to Try Spans and polysorbate in Your Formulation?

At FoodEmul, we supply food-grade Span and polysorbate emulsifiers. Whether you’re developing a bakery product, a cosmetic emulsion, or a pharmaceutical preparation, we can help you pick the right grade and blend ratio.

Browse our Span 60 product specifications →

Browse our Polysorbate 80 product page →

Got a specific application? Reach out and we’ll work through the HLB math together.
